| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | TMTeck |
| Số mô hình: | Dòng TS26 |
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | Có thể thương lượng |
| chi tiết đóng gói: | thùng carton |
| Thời gian giao hàng: | 4-6 ngày làm việc |
| Điều khoản thanh toán: | T/T, Liên minh phương Tây, PayPal |
| Khả năng cung cấp: | 100 chiếc / một tuần |
| Yếu tố: | 128 | Hình dạng phần tử: | Lớp lót |
|---|---|---|---|
| Kích cỡ: | LxWxH 83x21x35(mm)3.27x0.83x1.38(in) | Ứng dụng: | Kiểm tra các tấm hoặc phụ tùng làm bằng thép |
| Làm nổi bật: | TS26 I2 immersion probe transducer,ultrasonic immersion probe,immersion probe with warranty |
||

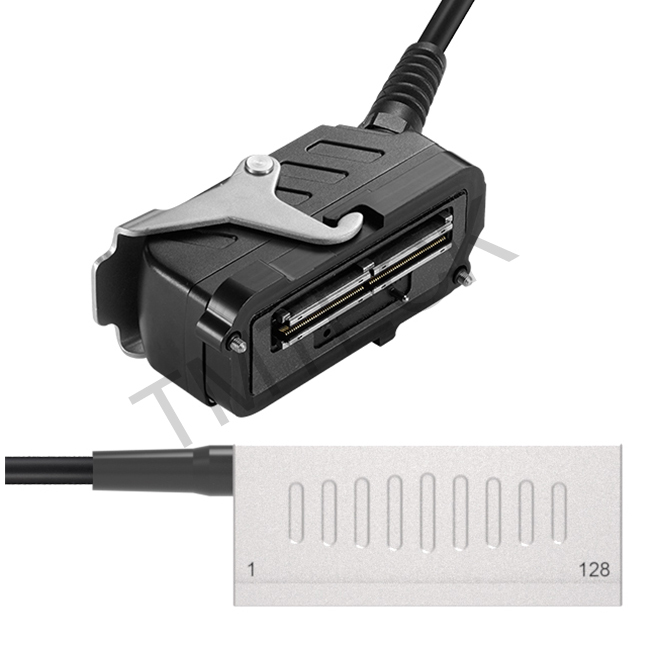

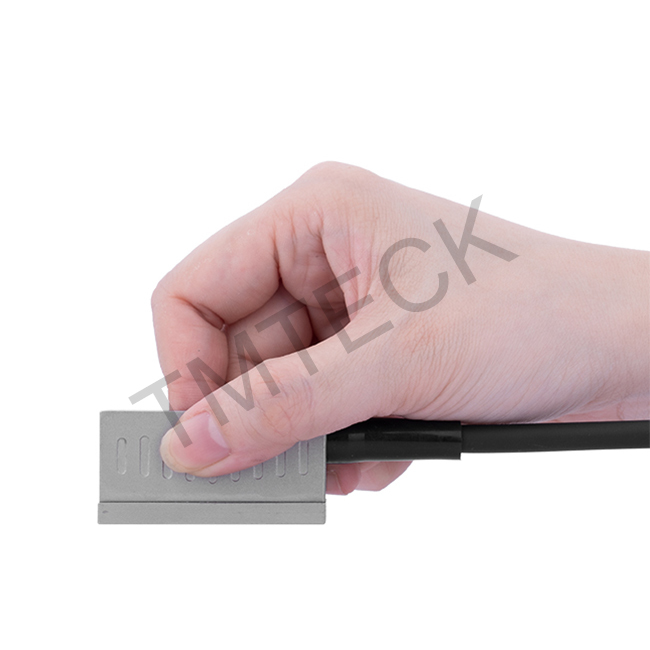

Immersion Probe: It can be used together with water wedges, or the test samples can be placed in water to complete the test.
Advantages
1. Acoustic impedance matched to water, suitable for work piece inspection of geometrically complex shapes.
2. Designed to fit onto the wedge, easy to couple to a variety of surfaces with adjustable underwater sound paths.
3.Single linear scan can cover distances from 30 mm to 90 mm.
4.High accuracy , can work normally for 24 hours under one meter of water depth.
Applications
1.Testing of sheets or fittings made of steel, aluminum or other materials.
2.The composite was tested to detect defects such as delamination and disbonding.
3.Large area scanning of the detected object, online thickness measurement.
| Probe Series |
Model |
Compatible Model |
Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev.(mm) | Size(LxWxH) |
| TS26/I2 | 2.25L64-1.0x10 | 2.25L64-64x10 | Linear | 2.25 | 64 | 1.00 | 64.0 | 10.0 |
83x21x35 (mm) (in) |
| 3.5L128-0.6x10 | 3.5L128-76.8x10 | Linear | 3.5 | 128 | 0.60 | 76.8 | 10.0 | ||
| 5L128-0.6x10 | 5L128-76.8x10 | Linear | 5 | 128 | 0.60 | 76.8 | 10.0 | ||
| 7.5L128-0.6x10 | 7.5L128-76.8x10 | Linear | 7.5 | 128 | 0.60 | 76.8 | 10.0 | ||
| 10L128-0.5x7 | 10L128-64x7 | Linear | 10 | 128 | 0.50 | 64.0 | 7.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Model Number:3.5L128-0.6x10-TS26/3.5L128-76.8x10-I2
Element:128
Element Shape:linear
Size:LxWxH 83x21x35(mm)3.27x0.83x1.38(in)
Application:Testing of sheets or fittings made of steel
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
