| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | TMTeck |
| Số mô hình: | TS19 |
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | Có thể thương lượng |
| chi tiết đóng gói: | thùng carton |
| Thời gian giao hàng: | 4-6 ngày làm việc |
| Điều khoản thanh toán: | T/T, Liên minh phương Tây, PayPal |
| Khả năng cung cấp: | 100 chiếc / một tuần |
| Số mô hình: | 7.5L60-1.0x10-TS19/7.5L60-60x10-PWZ1 | Yếu tố: | 60 |
|---|---|---|---|
| Hình dạng phần tử: | Tuyến tính | Kích cỡ: | DàixRxC 68x26x30(mm)2.68x1.02x1.18(in) |
| Làm nổi bật: | large pipe inspection probes,TS19 ultrasonic transducer,measuring range pipe probes |
||

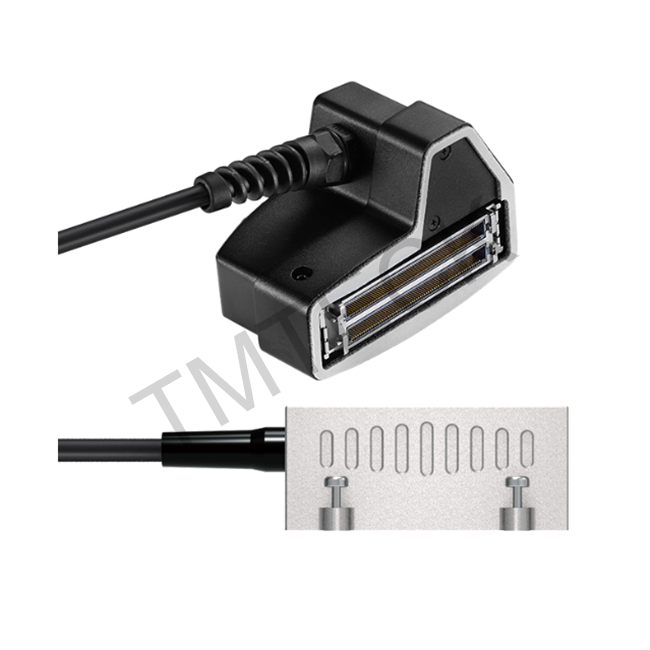

Pipe-Inspection Probes: large size and measuring range, used to complete oil, gas, electricity and other related pipeline inspection.
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.The combination of s19 and s20 can automatically detect the girth weld, which is suitable for manual or automatic inspection of pipeline welds.
3. S20 is internal focus probe to optimize the signal to noise ratio
4.Good beam energy in the detection of small pipe/thin wall samples
5.Acoustic, can be matched with Rexolite, can complete most angles of sound beam
6.Can detect thick flat materials and welds, forgings, noise or granular materials
Application
1.Oil and gas: oil pipelines, bottles, tanks, etc.
2. Electricity: pressure vessels and pipelines, turbine blades, rotor monitoring, etc.
3.Other: testing of thick welds, pipe welds, etc.
| Probe Series |
Model |
Compatible Model |
Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev. (mm) |
Size(LxWxH) |
| TS19/PWZ1 | 2.25L60-1.0x10 | 2.25L60-60x10 | Linear | 2.25 | 60 | 1.00 | 60.0 | 10.0 |
68x26x30 (mm) 2.68x1.02x1.18 (in) |
| 4L60-1.0x10 | 4L60-60x10 | Linear | 4 | 60 | 1.00 | 60.0 | 10.0 | ||
| 5L60-1.0x10 | 5L60-60x10 | Linear | 5 | 60 | 1.00 | 60.0 | 10.0 | ||
| 7.5L60-1.0x10 | 7.5L60-60x10 | Linear | 7.5 | 60 | 1.00 | 60.0 | 10.0 | ||
| 10L120-0.5x10 | 10L120-60x10 | Linear | 10 | 120 | 0.50 | 60.0 | 10.0 |
Specification
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Wedge Specification
| Probe Series | Model | Compatible Model | Element Shape | Size(LxWxH) |
| TS19/PWZ1 | N0L | 0°LW | 40°~70° |
68x26x30 (mm) 2.68x1.02x1.18 (in) |
| N45L | 45°LW | 40°~70° | ||
| N55L | 55°LW | 40°~70° | ||
| N60L | 60°LW | 40°~70° | ||
| N55S | 55°SW | 40°~70° | ||
| N60S | 60°SW | 40°~70° | ||
| N70S | 70°SW | 40°~70° | ||
| N60S-IHC | 60°SW | 40°~70° | ||
| N60S-AOD100 | 60°SW | 40°~70° | ||
| N60S-IHC-AOD100 | 60°SW | 40°~70° |
Quick Details
Model Number:7.5L60-1.0x10-TS19/7.5L60-60x10-PWZ1
Element:60
Element Shape:Linear
Size:LxWxH 68x26x30(mm)2.68x1.02x1.18(in)
Application:Oil and gas: oil pipelines, bottles, tanks, etc.
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
